PRO-CSP

Integrate CSP technology into headlamp application which can reduce the heat resistance and dissipate the heat quickly in order to maintain better lumens at operating state.

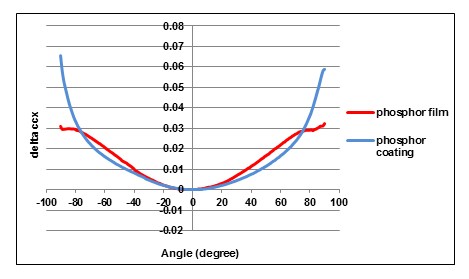

Pro-CSP adopts the evolutional new phosphor film technology which provide better light uniformity and reliability.

PBVB PBVC PBVD PBVE PBVF



  • PBVB
  • PBVC
  • PBVD
  • PBVE
  • PBVF

Datasheet Part Number Color Test
Current
(mA)
VF
(Typ.)
Min.
Lumens
Typ.
Lumens
Typ.
CCT
1/2
DS-1316.pdf PBVB-7FWU-F2G White 1000 6.5 600 700 5620 K
5880 K
6150 K
6450 K
120

Datasheet Part Number Color Test Current
(mA)
VF
(Typ.)
Min.
Lumens
Typ.
Lumens
Typ.
CCT
1/2
DS-1317.pdf PBVC-10FWU-F3G White 1000 9.7 900 1100 5620 K
5880 K
6150 K
6450 K
120

Datasheet Part Number Color Test Current
(mA)
VF
(Typ.)
Min.
Lumens
Typ.
Lumens
Typ.
CCT
1/2
DS-1318.pdf PBVD-14FWU-F4G White 1000 12.9 1100 1400 5620 K
5880 K
6150 K
6450 K
120

Datasheet Part Number Color Test
Current
(mA)
VF
(Typ.)
Min.
Lumens
Typ.
Lumens
Typ.
CCT
1/2
DS-1319.pdf PBVE-17FWU-F5G White 1000 16.2 1600 1950 5620 K
5880 K
6150 K
6450 K
120

Datasheet Part Number Color Test Current
(mA)
VF
(Typ.)
Min.
Lumens
Typ.
Lumens
Typ.
CCT
1/2
DS-1340.pdf PBVF-31FWU-F9G White 1000 30.1 2750 3200 5620 K
5880 K
6150 K
6450 K
120
